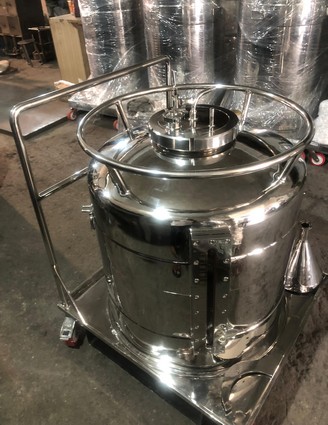

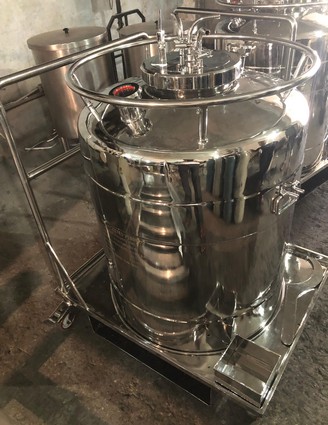

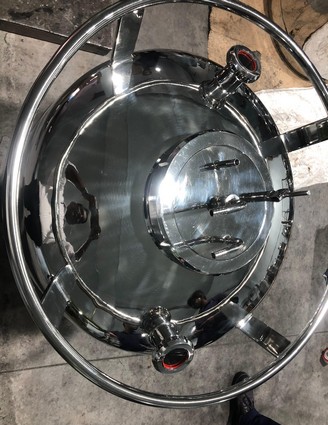

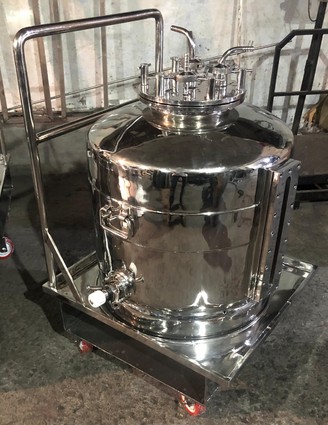

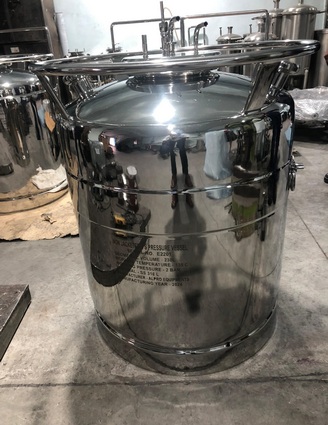

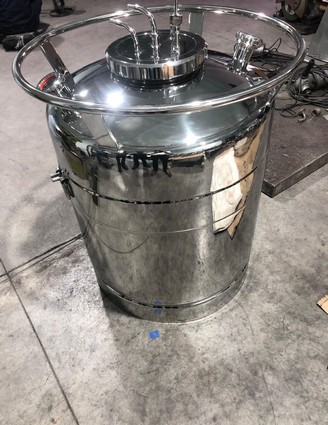

SS Mixing Vessel
SS Mixing vessel is required for preparation & mixing of media. Media is prepared in closed container. Vessel is properly mounted on movable trolley(SS304), swivel castor wheel. Mounting support for magnetic stirrer. Vessel has the magnetic agitator. Also have some top connections: Inlet port, Outlet, Air vent, Addition port, borosilicate glass. The agitator has silicon carbide diamond coated (Bottom driven top driven stirrer)
Specifications:
| Working Pressure | 0-2 BAR |
| Design pressure | 2.6 BAR |
| Working temperature | 135 degree c |
| Design Temperature | 150 degree c |
| Hydro test Pressure | 3.9 BAR |
| Manhole | Centrally located 200 mm |
| Surface finish | Vessel contact part-0.8 Ra Electropolished External surface -1.0 Ra Electropolished |
| Contact parts | SS316L |
| Non Contact parts | SS304 |
| Magnet | Si c |
| View glass | Borosilite |
| Gaskets | Silicon |
