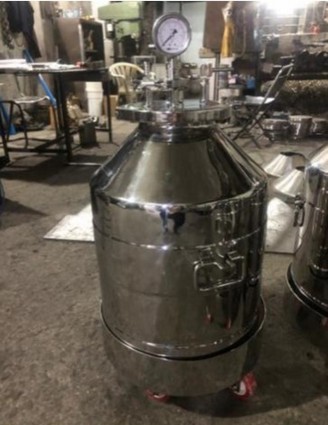

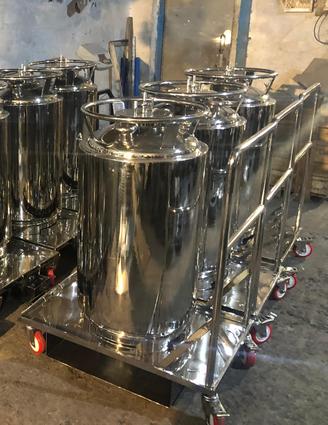

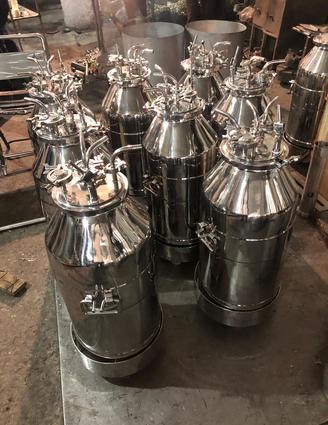

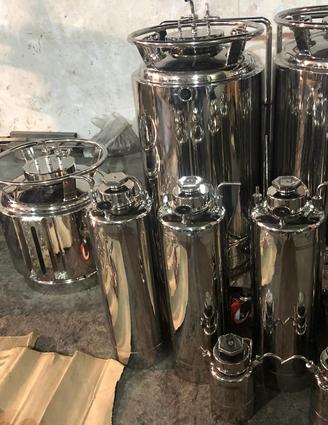

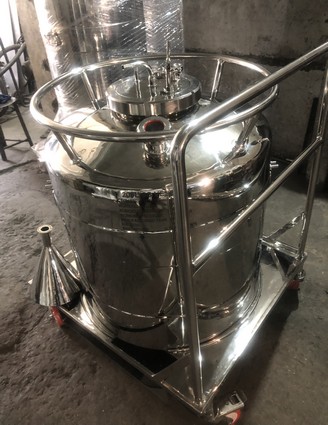

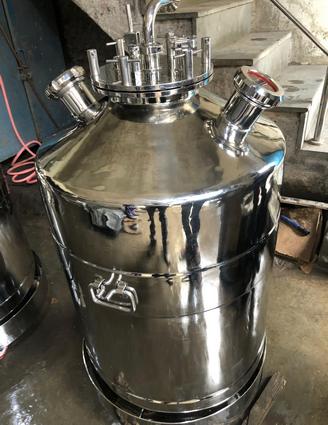

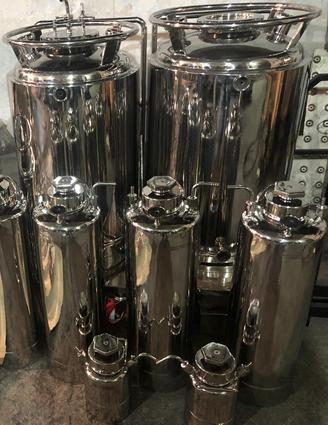

NON JACKETED PRESSURE VESSEL
The Non jacketed ss pressure vessel 100L is used for preparation and mixing of various media in Pharma industries.It has two sight glass for visually ensuring proper mixing of chemicals .The tank is placed on trolley having castor wheel with lockable facility.It is compatible with an autoclaving temperature of 121 degree C.The vessel can withstand full vaccum which could happen if the vent filters are wetted out and the vessel cools producing vaccum tank.
Specifications:
| Working Pressure | 2 BAR |
| Design pressure | 2.6 BAR |
| Working temperature | + 4degree c to 135 degree c |
| Design Temperature | 150 degree c |
| Hydro test Pressure | 3.9 BAR |
| Manhole | Centrtally located (ID 160mm) |
| Surface finish | Vessel contact part-0.8 Ra Electropolished External surface -1.0 Ra Electropolished |
| Contact parts | SS316L |
| Non Contact parts | SS304 |
| View glass | Borosilite |
| Gaskets | Silicon |
