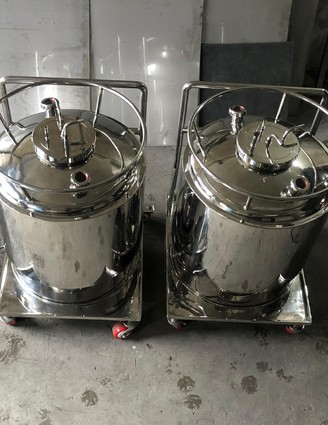

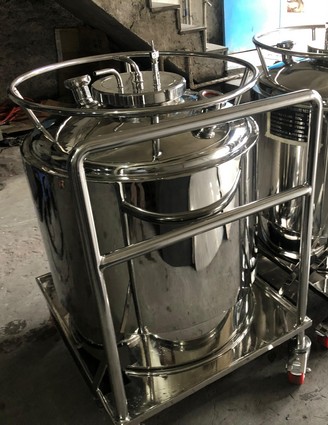

JACKETED PRESSURE VESSEL
Jacketed pressure vessel that is catered to numerous application areas in chemical, steel units, and many more It is available with agitators and is manufactured in cylindrical shape with vertical mounting facility. Its tops are open with flat and conical lids and bottoms are flat and conical shapes. We offer this with complete assembly along with stuffing box, agitator, gear box and motor with base frame.
Specifications:
| Material | SS 316L |
| Jacket Connections | 1.5" TC |
| Top Tri-Clamp Connection | 12" Tri-Clamp |
| Bottom Tri-Clamp Connection | 6" Tri-Clamp |
| Jacket Capacity | 58L |
| Vessel Max Pressure Rating | 9 bar |
| Vessel Max working Pressure Rating | 8 bar |
| Jacket Pressure Rating | 3 bar |
| Caster Weight Limit | 700KG |
| Dimensions | 1763mm X 758mm |
| Height – Total | 1763mm |
| Height – Inner Vessel | 950mm |
